DALI (Digital Addressable Lighting Interface)
Transform Your Lighting Experience with Smart Node's DALI Solutions
What is DALI and How It Works?
DALI (Digital Addressable Lighting Interface) is a globally trusted lighting control protocol known for its precision, flexibilty, and seamless performance. Unlike traditional dimming systems, DALI enables granular control, managing a large number of fixtures through a single controller, grouping them into multiple functional zones, and allowing limitless lighting scene creation.
Smart Node’s DALI system supports flicker-free dimming (DT6), tunable lighting and RGBW lighting (DT8), and is fully compatible with DALI drivers. Designed for both centralised and decentralised architectures, it’s the ideal solution for smart, future-ready lighting environments.
Turn any appliance into Smart appliance
DALI Components and Features

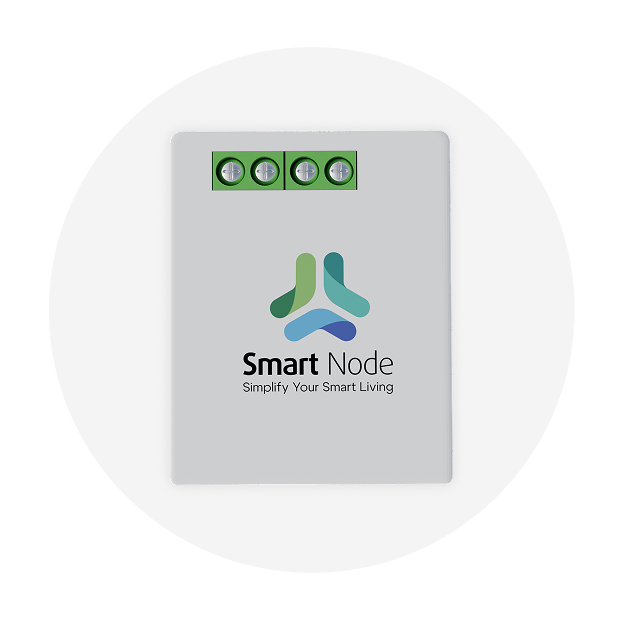

DALI Single Channel Controller Flush Mount
The Smart Node DALI Flush Mount Device enables advanced lighting control for up to 64 ballasts, 16 groups and unlimited scenes via app, voice and even manually with a touch panel. It fits behind your switchboards and takes power, thus excluding a DALI power supply
Features
Remote DALI setup and control
Smooth dimming with remote access
Set groups and scenes in the app
Control brightness, colour and temperature
Manage ballasts, groups and scenes remotely
Works with 4S(DALI), 8S(DALI)
Live load and dimming shown on screen
Supports short and long press
Supports creation of unlimited DALI lighting scenes via the app
DALI Dual Channel Power Supply
The DALI power supply provides 16V DC to the DALI bus, with an input voltage range of 100- 240VAC, ensuring stable communication for lights and dimmers. Also, it supports both single-channel and dual-channel DALI controllers.
Features
DALI-2 compliant power supply
One power source runs two buses
Supports 225mA for stable use
DIN rail mount, 85%+ energy efficient
Compact 53mm width for space efficiency
Safe with heat, voltage, and short protection
DALI Relay Module
The DALI Relay Module bridges non-DALI devices to the DALI Bus, enabling seamless control for efficient automation.
Features
Compatible with DALI-2 version
Meets DALI IEC 62386-208 (Type 7 Switch)
Can switch to both AC and DC loads
Sends ON/OFF feedback to the DALI controller
Sets relay On/Off during DALI line outage
On 24 VDC/250VAC power loss: When power returns, relay sets switch ON/OFF as per "Power On Level”

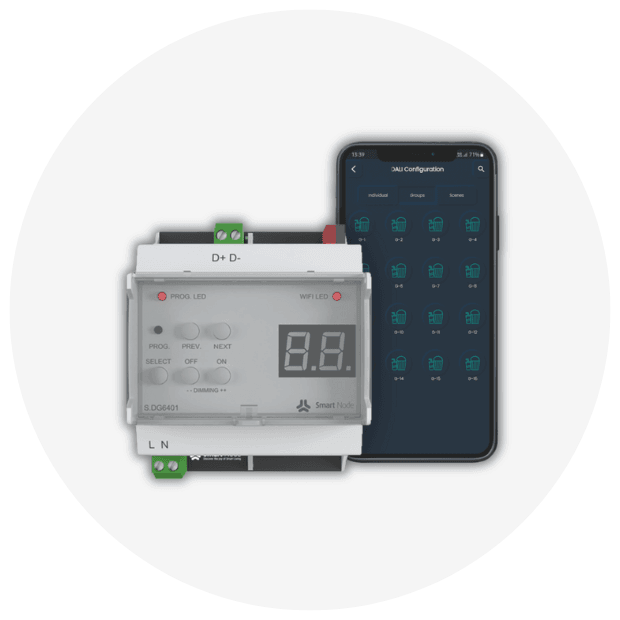

DALI Single Channel Controller DIN Rail Mount
The Wi-Fi-enabled DALI Single Channel Gateway wirelessly configures, operates, and monitors up to 64 DALI devices, offering 16 groups, precise dimming, unlimited scenes, and real-time updates, ideal for scalable, smart lighting automation.
Features
Controls up to 64 DALI lights for precise dimming
Supports up to 16 light groups and unlimited scenes
Works with both DALI 1 and DALI 2 for more flexibility
Eases setup with auto DALI ballast addressing
Made for fast, easy DALI ballast replacement
Supports DT6 and DT8 for better colour and brightness control
Let's you set switch delay and light fade time
Ensures safe and steady lighting setup
All ON/OFF control to check lights via DALI
Supports 64 schedules for single or group control
Supports creation of unlimited DALI lighting scenes via the SmartNode application
DALI Touch Module
The DALI Touch Module is a flush-mounted, multifunctional control unit available in two variants: 8 and 4 configurable switches, powered by the DALI bus. Users can assign lights, groups, or scenes via the IR remote, with customisable colour and material options.
Features
DALI-2 compliant touch panel with 4 or 8 touch zones for precise lighting control
Works with DALI-2 control units
Latest DALI standard protocol IEC62386
Supports dimming and tuning functions
Supports group, unlimited scene, single light, and all ON/OFF control
DALI Dual Channel Gateway DIN Rail Mount
The Wi-Fi-enabled DALI Dual Channel Gateway allows wireless configuration, control, and monitoring of DALI lighting systems, supporting up to 128 devices across two channels.
Features
Controls 32 groups for dimming and tuning altogether
Make endless DALI scenes with the Smart Node app
Works with DALI-1 and DALI-2
Auto setup for DALI ballasts
Easy to swap DALI ballasts
Supports DT6 & DT8 for colour and brightness
Set custom delays and fade times
Safe and stable system setup
ON/OFF check from DALI controller
Set up to 64 lighting schedules
Supports creation of unlimited DALI lighting scenes via the app
